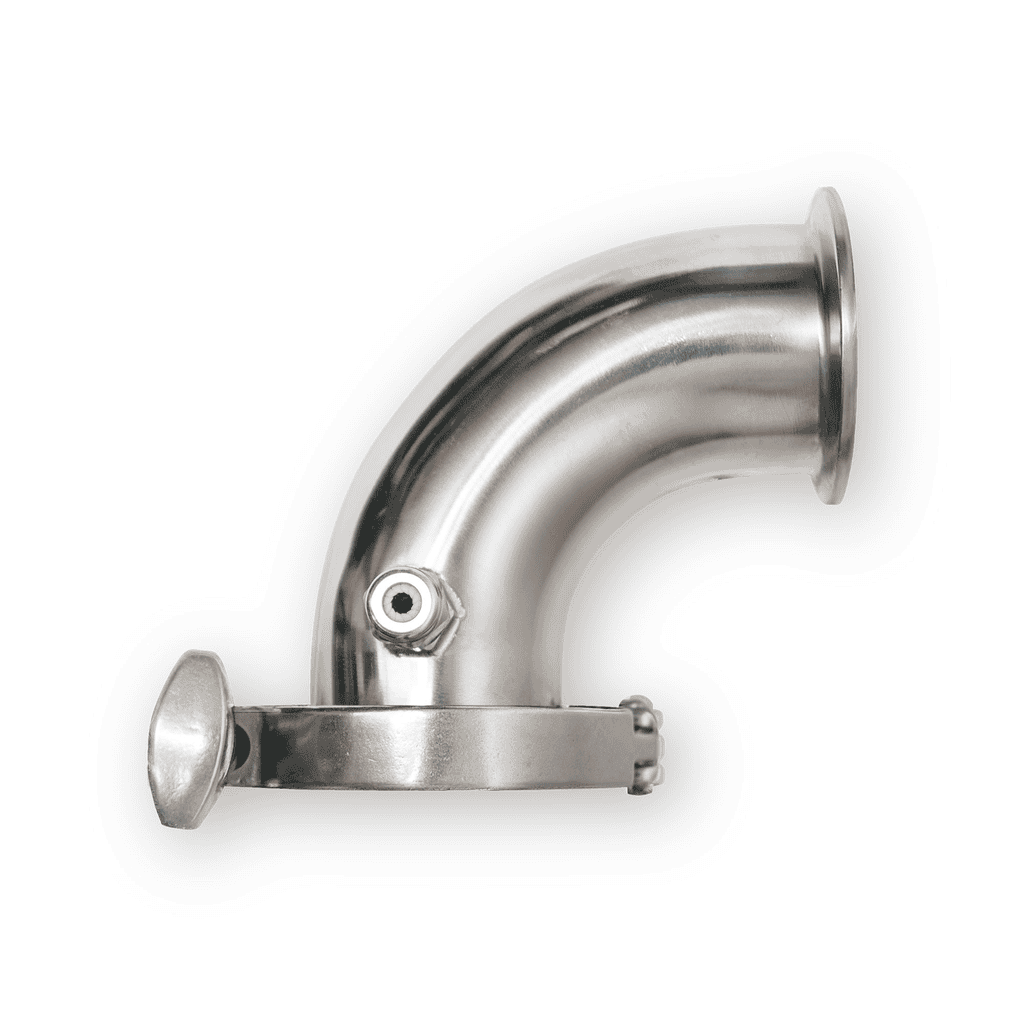

Still Spirits Create+ Thermowell 90° Elbow Section

The Still Spirits Create+ Thermowell 90° Elbow Section redirects vapour flow through a modular 2-inch tri-clamp distilling system while providing a secure location for a temperature probe.

Key features

• Connects to 2-inch tri-clamp distilling accessories
• Integrated thermowell for temperature monitoring
• Compatible with probes measuring 5–6mm in diameter
• 304-grade stainless steel construction
• High-temperature, food-grade silicone gasket

What’s included

• Thermowell 90° elbow section
• 2-inch tri-clamp
• 2-inch silicone gasket
• Black O-ring gasket
• Thermowell stainless steel cap

Specifications

• Dimensions: 11.3cm high × 11.3cm wide × 5.1cm deep
• Probe compatibility: 5–6mm diameter
• Weight: 0.297kg
• SKU: 50711

Using the thermowell

Fit the elbow into the system with the silicone gasket in the tri-clamp connection. Secure the thermometer probe using the supplied sleeves and stainless steel nut. If no probe is fitted, seal the thermowell with the supplied stainless steel cap and O-ring.

Rinse all components with fresh water before first use. Allow the section to cool fully before handling after distillation. Check local requirements before distilling alcohol.
