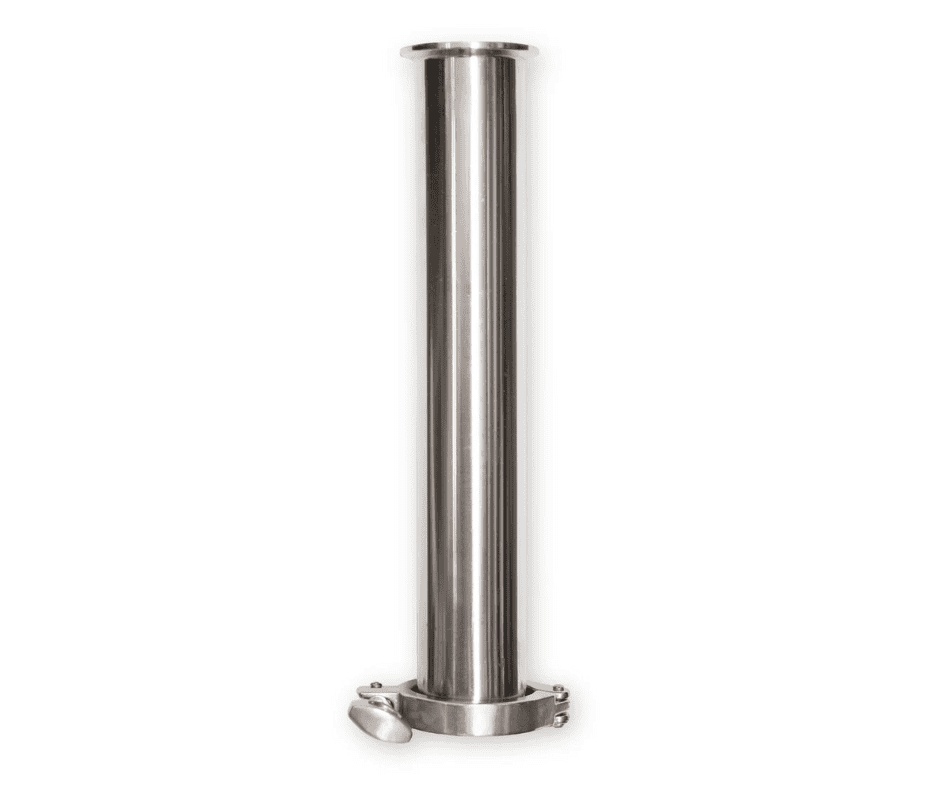

The Create+ Straight Section is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel Straight Section extends the column for enhanced reflux or integrates into a modular distilling system.
Key features:
- Connects to 2″ tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
INSTRUCTIONS: Insert Straight Section into your distilling system ensuring the silicone gasket is placed in the tri-clamp connection. Secure with a tri-clamp.
CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.
CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.
CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.
What’s Included:
- Straight Section
- 2″ Tri-clamp
- 2″ Silicone Gasket
Specifcations:
- Dimenions: H 30.0 cm x W 5.1 cm x D 5.1 cm
- Weight: 0.583 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
| Weight | 5 kg |
|---|
